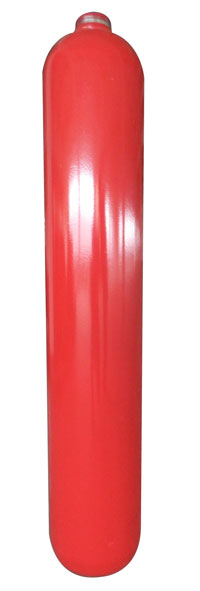

Steel Fire Extinguisher Cylinders
|
Product Descriptions
| Specification | Outside Diameter | Water Capacity | Nominal Height | Extinguisher Weight | Filling Weight | Min.Wall Thickness | Temperature Range | Nominal Height |
Service Pressure | Material |
| (mm) | (L) | (mm) | (kg) | (kg) | (mm) | (mm) | (Mpa) | |||
| 2kg | 105 | 3 | 475 | 7 | 2 | 2.3 | -20℃-+60℃ | 475 | 17.4 | 34CrMo4 |
| 3kg | 138 | 4.5 | 440 | 11 | 3 | 3.0 | 440 | |||
| 4.5kg | 138 | 6.8 | 600 | 14 | 4.5 | 3.0 | 600 | |||
| 5kg | 138 | 7.5 | 655 | 15 | 5 | 3.0 | 655 | |||
| 1.3kg | 114 | 2 | 320 | 6.5 | 1.3 | 3.68 | 320 | 45/CK45 | ||
| 2kg | 114 | 3 | 415 | 8.5 | 2 | 3.68 | 415 | |||
| 2.3kg | 114 | 3.5 | 470 | 10 | 2.3 | 3.68 | 470 | |||
| 3kg | 152 | 4.5 | 605 | 11.7 | 3 | 3.68 | 605 | |||
| 4kg | 152 | 6 | 480 | 16 | 4 | 4.9 | 480 | |||
| 4.5kg | 152 | 6.8 | 520 | 17.5 | 4.5 | 4.9 | 520 | |||
| 5kg | 152 | 7.5 | 570 | 19 | 5 | 4.9 | 570 | |||
| 6kg | 152 | 9 | 670 | 22 | 6 | 4.9 | 670 | |||
| 7kg | 152 | 10.5 | 770 | 25 | 7 | 4.9 | 770 | |||
| 9kg | 152 | 13.5 | 980 | 30 | 9 | 4.9 | 980 |
