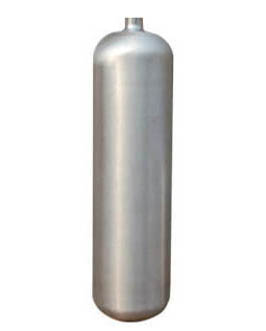

Type 3 aluminum liners
|
Product Descriptions
We manufacture many Type-3 aluminum liners for cylinders in active service across a wide range of global markets, including SCBA and life support, medical gases, alternative fuel, and paintball applications. Working with plate or cold-extruded tube, we can provide a wide variety of custom-manufactured configurations.Our in-house liner engineering team has in-depth experience and knowledge to provide insights into optimal liner design and manufacturing options for any given application.
All design-related specifications, drawings and tooling are maintained as proprietary information owned by our customers. All liners are supplied with all relevant certificates of approval and conformance.
| Model | Water Capacity | Outside Diameter | Height | Wall Thickness | Net Weight | Material |
| (L) | (mm) | (mm) | (mm) | (Kg) | ||
| LWD88-2.0-2.0 | 2.0 | 88 | 425 | 2.0 | 0.8 | AA6061-T6 |
| LWD100-2.0-2.5 | 2.0 | 100 | 345 | 2.5 | 0.9 | |
| LWD105-3.0-2.0 | 3.0 | 105 | 438 | 2.0 | 1.1 | |
| LWD106-1.4-2.5 | 1.4 | 106 | 252 | 2.5 | 0.6 | |
| LWD106-1.6-2.5 | 1.6 | 106 | 262 | 2.5 | 0.8 | |
| LWD106-3.0-2.5 | 3.0 | 106 | 443 | 2.5 | 1.3 | |
| LWD120-2.3-2.5 | 2.3 | 120 | 284 | 2.5 | 0.9 | |
| LWD120-2.4-2.5 | 2.4 | 120 | 294 | 2.5 | 1.0 | |
| LWD120-2.5-2.5 | 2.5 | 120 | 304 | 2.5 | 1.1 | |
| LWD124-2.7-2.0 | 2.7 | 124 | 300 | 2.0 | 0.8 | |
| LWD125-2.4-2.5 | 2.4 | 125 | 274 | 2.5 | 1.0 | |
| LWD125-2.5-2.5 | 2.5 | 125 | 285 | 2.5 | 1.0 | |
| LWD125-3.0-2.5 | 3.0 | 125 | 326 | 2.5 | 1.1 | |
| LWD125-4.7-2.5 | 4.7 | 125 | 480 | 2.5 | 1.5 | |
| LWD144-6.8-2.0 | 6.8 | 144 | 518 | 2.0 | 2.0 | |
| LWD145-6.8-2.5 | 6.8 | 145 | 518 | 2.5 | 2.3 | |
| LWD155-7.0-1.5 | 7.0 | 155 | 345 | 1.5 | 1.3 | |
| LWD162-9.0-2.5 | 9.0 | 162 | 548 | 2.5 | 2.5 | |
| LWD190-12.0-3.0 | 12.0 | 190 | 550 | 3.0 | 3.7 | |
| LWD200-15.0-2.5 | 15.0 | 200 | 627 | 2.5 | 3.8 | |
| LWD200-20.0-2.5 | 20.0 | 200 | 792 | 2.5 | 4.4 |
