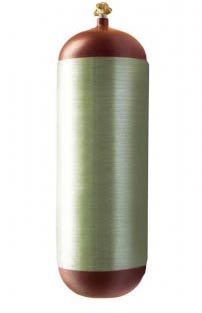

Alternative fuel cylinders
Alternative fuel cylinders
Product Descriptions



A leading global supplier of lightweight, high-pressure composite cylinders for storage and transportation of compressed natural gas (CNG), a clean-burning, environmentally friendly alternative fuel (AF). Also used for storage of bio-methane, hydrogen and other industrial bulk gases.


Because our Type 3 AF cylinders are 66% lighter than Type 1 steel cylinders and up to 20% lighter than other Type 3 cylinders, they offer greatly improved fuel economy, increased range and a significant reduction in vehicle maintenance costs because they lessen wear and tear on brakes, tires and suspension systems. In haulage businesses, reduced vehicle weight also permits higher payloads. Since lightweight composite cylinders can be manufactured in much larger diameters than would be practical with much heavier all-metal cylinders, fewer composite cylinders are required to contain the same volume of gas.


Model Water Capacity Outside Diameter Nominal Weight(Approx.) Nominal
Height(Approx.)
Service Pressure Material
(L)  (mm) (Kg) (mm) (Mpa)
CNP20-40-279A 40 279 51 895 20 30CrMo wrapped
with epoxy resin and glass fiber
CNP20-46-279A 46 57 1006
CNP20-48-279A 48 59 1043
CNP20-50-279A 50 61 1080
CNP20-60-279A 60 71 1265
CNP20-70-279A 70 82 1450
CNP20-80-279A 80 92 1636
CNP20-90-279A 90 103 1821
CNP20-100-279A 100 113 2006
CNP20-110-279A 110 123 2191
CNP20-120-279A 120 134 2376
CNP20-50-356A 50 356 56 707
CNP20-55-356A 55 61 763
CNP20-57-356A 57 63 786
CNP20-60-356A 60 65 819
CNP20-65-356A 65 70 875
CNP20-70-356A 70 74 931
CNP20-75-356A 75 79 987
CNP20-77-356A 77 81 1010
CNP20-80-356A 70 83 1043
CNP20-82-356A 82 85 1066
CNP20-85-356A 85 91 1099
CNP20-90-356A 90 96 1155
CNP20-100-356A 100 104 1266
CNP20-110-356A 110 113 1378
CNP20-111-356A 111 114 1390
CNP20-113-356A 113 116 1410
CNP20-120-356A 120 122 1490
CNP20-130-356A 130 131 1602
CNP20-140-356A 140 140 1714
CNP20-145-356A 145 144 1770
CNP20-57-406A 57 406 72.6 684
CNP20-60-406A 60 75.2 709
CNP20-65-406A 65 79.6 752
CNP20-70-406A 70 84 795
CNP20-75-406A 75 88.4 838
CNP20-77-406A 77 90.2 856
CNP20-80-406A 80 92.8 881
CNP20-85-406A 85 97.2 924
CNP20-90-406A 90 101.6 967
CNP20-95-406A 95 106 1010
CNP20-98-406A 98 108.6 1036
CNP20-100-406A 100 110.4 1053
CNP20-105-406A 105 114.8 1096
CNP20-110-406A 110 119.2 1139
CNP20-113-406A 113 121.8 1165
CNP20-115-406A 115 123.6 1182
CNP20-120-406A 120 128 1225
CNP20-125-406A 125 132.4 1268
CNP20-130-406A 130 136.8 1311
CNP20-140-406A 140 145.6 1397
CNP20-145-406A 145 150 1440
CNP20-150-406A 150 154.4 1483
